Accessories

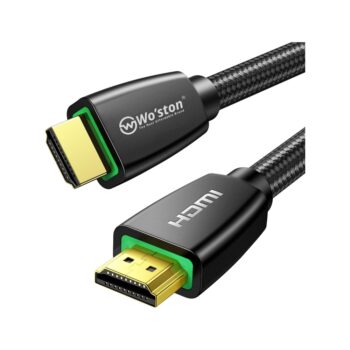

Wo’ston High Speed Braided HDMI Cable
Features
· Nickel-plated connectors for highest signal transfer rate and resistance in corrosion.
· Moulded strain-relief design lessens plug/socket pressure
· Designed to meet all HDMI standards
· Supports 480i, 480p, 720p, 1080i, 1080p, 4K resolution
· Cable constructed using the high quality material for best contact between HDMI equipment’s.
· Fully supports 3D over HDMI feature
Specifications
CABLE TYPE
HDMI
GAUGE
28AWG
SHIELDING
Multi-layer
CONNECTOR 1
HDMI Type A Male
CONNECTOR 2
HDMI Type A Male
SUPPORTED RESOLUTION
HDTV: 480i, 480p, 720p, 1080i, 1080p
SKU: n/a
Home Entertainment
Best Seller
Recently Viewed
Wo’ston High Speed Braided HDMI Cable
Features
· Nickel-plated connectors for highest signal transfer rate and resistance in corrosion.
· Moulded strain-relief design lessens plug/socket pressure
· Designed to meet all HDMI standards
· Supports 480i, 480p, 720p, 1080i, 1080p, 4K resolution
· Cable constructed using the high quality material for best contact between HDMI equipment’s.
· Fully supports 3D over HDMI feature
Specifications
CABLE TYPE
HDMI
GAUGE
28AWG
SHIELDING
Multi-layer
CONNECTOR 1
HDMI Type A Male
CONNECTOR 2
HDMI Type A Male
SUPPORTED RESOLUTION
HDTV: 480i, 480p, 720p, 1080i, 1080p
Woston CCTV SMPS 16 Channel ABS Multi Output (WS-IP200)
| Input voltage | 180~264V AC |
| Output voltage | 12V DC |
| Current Range | 0~8A |
| Rated Power | 96W |
| Ripple & Noise (max.) | 120mVp-p |
| Voltage Adj. Range | 11.4~12.6V |
| Line Regulation | ±1.0% |
| Voltage Tolerance | n/a |
| Setup Rise time | 2500ms, 15ms at full load |
| Hold Up Time (Typ.) | 35ms at full load |
| Load Regulation | ±5.0% |
| Temperature coefficient | ±0.03%/°C (0~50°C) |
| Frequency Range | 47~63HZ |
| Efficiency (Typ.) | 86% |
| AC Current (Typ.) | 2A/220VAC |
| Inrush Current (Typ.) | Cold Start: 50A/220V AC |
| Leakage Current | <2mA / 240VAC |
| Over Load | 110~200% rated output power, Protection type: Shut down O/P, recovers automatically |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500V DC / 25°C/ 70% RH |
| Working Humidity | 20 ~ 90% RH Non-condensing |
| Vibration | 10 ~ 500Hz, 3G 10min./1 cycle, 60min. each along X, Y, Z |
| Dimension | 186(L) x 130.5(W) x 39mm(H) |
| Store temperature | -20 ~ +85°C |
| Working temperature | -20 ~ +45°C |
| Withstand Voltage | I/P-O/P: 1.5KVAC I/ P-FG: 1.5KVAC O/ P-FG: 0.5KVAC |
Woston CCTV SMPS 8 Channel ABS Multi Output (WS-IP100)
| Input voltage | 180~264V AC |
| Output voltage | 12V DC |
| Current Range | 0~5A |
| Rated Power | 60W |
| Ripple & Noise (max.) | 120mVp-p |
| Voltage Adj. Range | 11.4~12.6V |
| Line Regulation | ±1.0% |
| Voltage Tolerance | n/a |
| Setup Rise time | 2500ms, 15ms at full load |
| Hold Up Time (Typ.) | 20ms at full load |
| Load Regulation | ±5.0% |
| Temperature coefficient | ±0.03%/°C (0~50°C) |
| Frequency Range | 47~63HZ |
| Efficiency (Typ.) | 86% |
| AC Current (Typ.) | 1A/220VAC |
| Inrush Current (Typ.) | Cold Start: 40A/220V AC |
| Leakage Current | <2mA / 240VAC |
| Over Load | 110~200% rated output power, Protection type: Shut down O/P, recovers automatically |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500V DC / 25°C/ 70% RH |
| Working Humidity | 20 ~ 90% RH Non-condensing |
| Vibration | 10 ~ 500Hz, 3G 10min./1 cycle, 60min. each along X, Y, Z |
| Dimension | 144(L) x 109.5(W) x 33mm(H) |
| Store temperature | -20 ~ +85°C |
| Working temperature | -20 ~ +45°C |
| Withstand Voltage | I/P-O/P: 1.5KVAC I/ P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
Woston CCTV SMPS 4 Channel ABS Multi Output (WS-IP50)
| Input voltage | 180~264V AC |
| Output voltage | 12V DC |
| Current Range | 0~3A |
| Rated Power | 36W |
| Ripple & Noise (max.) | 120mVp-p |
| Voltage Adj. Range | 11.4~12.6V |
| Line Regulation | ±1.0% |
| Voltage Tolerance | n/a |
| Setup Rise time | 2500ms, 15ms at full load |
| Hold Up Time (Typ.) | 25ms at full load |
| Load Regulation | ±5.0% |
| Temperature coefficient | ±0.03%/°C (0~50°C) |
| Frequency Range | 47~63HZ |
| Efficiency (Typ.) | 86% |
| AC Current (Typ.) | 1A/220VAC |
| Inrush Current (Typ.) | Cold Start: 40A/220V AC |
| Leakage Current | <2mA / 240VAC |
| Over Load | 110~200% rated output power, Protection type: Shut down O/P, recovers automatically |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH |
| Working Humidity | 20 ~ 90% RH Non-condensing |
| Vibration | 10 ~ 500Hz, 3G 10min./1 cycle, 60min. each along X, Y, Z |
| Dimension | 144(L) x 80(W) x 33mm(H) |
| Store temperature | -20 ~ +85°C |
| Working temperature | -20 ~ +45°C |
| Withstand Voltage | I/P-O/P: 1.5KVAC I/ P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
