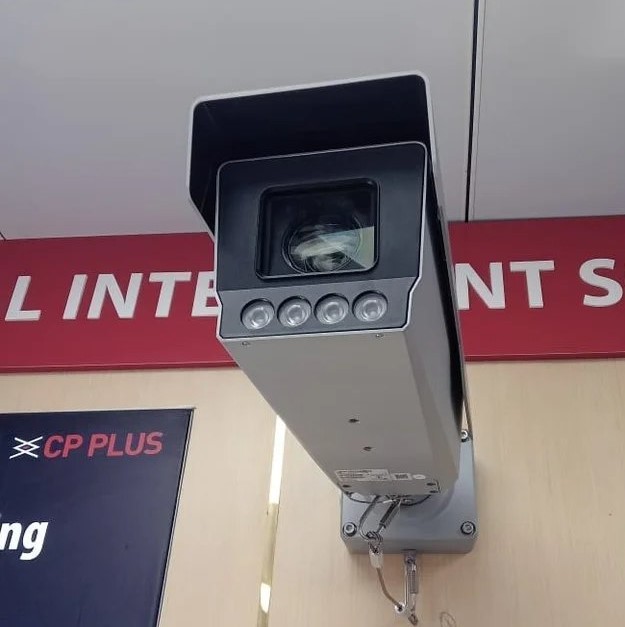

CP Plus Pro IP 4mp ANPR AI Enforcement CCTV Camera CP-UNC-TT41L3-VM
- 1/1.8″ 4MP starlight CMOS sensor (1.411 cm)
- H.265 and H.264 dual codec.
- Maximum Resolution: 2688 × 1520@25/30fps.
- Built-in 10mm~50mm lens.
- The maximum illumination distance is 30 Mtr.
- IP67, IK10 rated.
₹51,999.00 ₹121,600.00
Specification –
| Main Processor | High-performance embedded processor |
| Image Sensor | 1/1.8” CMOS (1.411 cm) |
| Shutter Speed | Single shutter |
| Electronic Shutter | Auto/Manual 1/50 s–1/100,000 s |
| Image Rotation | 2688 (H) × 1520 (V) (OSD black background is not calculated in the pixels) |
| Noise Reduction | 3D NR |
| S/N Ratio | >56dB |
| Minimum Illumination | 0.0001 lux |
| Day/Night | Supports ICR auto switch: IR cut-off filter (IRCF) with the polarizing filter is used during the daytime, and switches to the common IR cut-off filter at night |
| Focal Length | 10mm–50mm Motorized |
| Max. Aperture | Max. F1.33 |
| Field of View | Horizontal: 9.4°–40.8° Vertical: 5.4°–22.9° Diagonal: 10.7°–46.9° |
| Exposure Mode | Auto, Manual (Select from shutter values or customize shutter range) |
| Gain Scope | 0-100 |
| Bit Rate Control | CBR; VBR |
| Video Resolution | 4M (2688 × 1520)/ 1080P (1920 × 1080)/ UXGA (1600 × 1200)/ 720P (1280 × 720)/ D1 (704 × 576)/CIF (352 × 288) |
| Video Frame Rate | Main stream (2688 × 1520@25/30fps), (1920 x 1080@50/60fps) Sub stream (1600 × 1200@25/30fps) |
| Video Bit Rate | H.264: 32kbps–32767kbps; H.265: 32kbps–32767kbps; MJPEG: 512kbps–32767kbps |
| Video Compression | H.265; H.264M; H.264H; MJPEG |
| Picture Encoding Format | JPEG |
| Auto Gain Control | Support |
| Signal Processing | Digital Signal Process |
| WDR | 140dB |
| White Balance | Auto; Manual; Outdoor; Natural; Street Lamp; Partial white balance |
| BLC | Auto |
| HLC | Auto |
| Bad Pixel Correction | Yes |
| Edge Enhancement | Yes |
| Composite Image | Supports combining up to 3 source images, and 1 close-up image into a composite image |
| Trigger Mode | Video detection/radar* |
| OSD Overlay | Time, address, device SN, lane No., plate number, plate color, vehicle logo, vehicle type, vehicle color, vehicle size, vehicle speed, country/region, event (violation name), and motorcycle attributes (type, number of people, and helmet) |
| Storage | 1, supports maximum 512 GB SD card local storage |
| Alarm Event | Storage full, storage error, external alarm, no storage space, license plate blocklist, illegal access, and security fault |
| Automatic Network Replenishment (ANR) | Platform, FTP (SD card is required) |
| Image Tampering Prevention | Verifies watermarks in videos and images |
| Time Synchronization | NTP; GPS |
| Security | Authorized username and password, MAC address binding, HTTPS encryption, and network access control |
| Positioning | GPS |
| Auto registration | Yes |
| Vehicle with NO License Plate Detection | Support |
| Effective Range for ANPR | 30mtr |
| Detection Accuracy (min) | 98% |
| Speed Detection Range | 0 km/h–180 km/h |
| Detection Target | Motor vehicle; motorcycle |
| Vehicle Logo | Acura; Alfaromeo; Ashok leyland; Astonmartin; Audi; Baic; Bently; Benz; BMW; Buick; BYD; Cadillac; Chery; Chevrolet; Chrysler; Citroen; Dacia; Daihatsu; Datsun; Dodge; DS; Ferrari; Fiat; Force; Ford; Foton; Geely; GMC; Greatwall; Hino; Honda; Hyundai; Infiniti; Isuzu; Iveco; Jac; Jaguar; Jeep; Kia; Kinglong; Land; Lexus; Lifan; Lincoln; Mahindra; MAN; Maserati; Mazda; Mercury; MG; Mini; Mitsubishi; Nissan; Opel; Peugeot; Porsche; Renault; Rollsroyce; Saab; Scania; Seat; Skoda; Smart; Subaru; Suzuki; Tata; Tesla; Toyota; UD; Volkswagen; Volvo |
| Vehicle Color Recognition | White, pink, black, red, yellow, gray, blue, green, dark orange, purple, brown, and silver gray (color recognition is not supported during night time) |
| ANPR | Adopts CP Plus developed algorithms to recognize license plate numbers and letters |
| Vehicle Type Recognition | Vehicle head: Large bus, heavy truck, medium truck, sedan, van, light truck, medium bus, SUV, MPV, and pickup Vehicle tail: SUV, large bus, sedan, light truck, pickup, medium truck, van, and heavy truck |
| Motor Vehicle Violation Snapshot | Speeding; driving slow; wrong-way driving; illegal lane change |
| Motorcycle Violation Capture | Overloading, not wearing a helmet |
| Traffic Flow Detection | Statistics on vehicle flow, average speed, vehicle type, lane occupancy, average time headway, average queue length, and road status |
| Traffic Event | Motor vehicle illegal stopping on the roadway; traffic congestion |
| Network | 1 × RJ-45 Ethernet port, 10/100/1000 M network transmission |
| SDK and API | Yes |
| RS-485 | 2, connecting to devices such as radar |
| RS-232 | 2, con is used for serial debugging and R T G is for connecting to radars |
| Alarm Input | 3 channels |
| Alarm Output | 2 channels. 1 for relay, and 1 for optocoupler |
| Audio Compression | G.711A; G.711Mu; G.726 |
| Audio Input | 1 Channel |
| Audio Output | 1 Channel |
| Lane Coverage | 1–2 lanes |
| IR Distance | 23 m–30 m (75.46 ft–98.43 ft) (adjustable brightness) |
| IR Light | Yes |
| IR Number | 4 illuminators (830 nm LED illuminators, adjustable brightness) |
| Protocol | HTTP, HTTPS, TCP/IP, UDP, ICMP, IGMP, FTP, DHCP, DNS, DDNS, PPPoE, NTP, SSL, RTP, RTSP, RTCP, UPnP, SMTP, SNMP, IGMP, QoS, 802.1X, IPv4 and IPv6, ONVIF (Profile S, Profile G, Profile T) |
| Browser | IE: IE 9–11, Chrome: Chrome 41 and earlier, Firefox: Firefox 49 and earlier, For Win 10 users, run the browser as administrator |
| Power Supply | 12–36 VDC, PoE |
| Power Consumption | ≤ 13W |
| Operating Temperature | -40°C to +65°C (−40°F to +149°F) |
| Storage Temperature | -40 °C to +65 °C (–40 °F to +149 °F) |
| Operating Humidity | 10%–90% |
| Storage Humidity | 10%–90% |
| Protection Grade | IP67 & IK10 |
| Dimensions | 466.4 mm × 135.8 mm × 134.1 mm (18.36” × 5.35” × 5.28”) (L × W × H) |
| Net Weight | 3.9 kg |
| Installation | Supports installation with universal mounting bracket, or side-mounted on pole with mounting bracket |
System Overview
CP PLUS cameras and NVRs that come with the ANPR technology support different plate cut-outs, as well as overview picture snapshots and video recording. This enables you to monitor in real-time the various license plates in present in the vicinity. Being embedded with the Whitelist database adds further to these cameras because that lets them control the barriers automatically. These cameras have also been inculcated with the latest WDR technology.
Algorithmic Working
This design has been embedded with the ANPR algorithm inside the device to automatically and efficiently keep a track of the cars coming in and out of the premises.
Automatic & Accurate
The automatic number plate recognition technology is being widely used these days as this enables accurate and automatic reading of every vehicle’s number plate that is crossing a border or an entrance and then that reading is automatically run through the system to detect if the vehicle should be allowed to enter or not.
Live Viewing
Unlike some, this technology enables you to record the picture feed but view it live as well at your convenience. On top of that, the advantages of high-resolution video recording are numerous.
True Day/Night (ICR)
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens. It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens.
Increased Efficiency
These products have proven to be so successful due to their multiple linkages to control barriers and other automation systems to increase the proficiency and keep you safe at all times.
Vehicle Detection
The intelligent detection technology that has been induced in this camera enables it to accurately detect the number of vehicles and humans in an image. This technology also comes in handy when one wants to detect motion in the camera’s frame as well as video tempering, scene changing, people gathering, parking detection, and heat map.
gCMOB/ iCMOB
Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/ NVRs and Video Door Phones, the CP PLUS gCMOB/ iCMOB application offers a host of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn cloud support; Playback; digital zoom ins; two-way talk, and more
