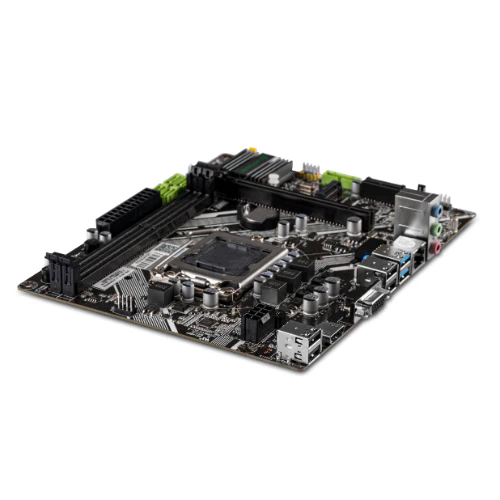

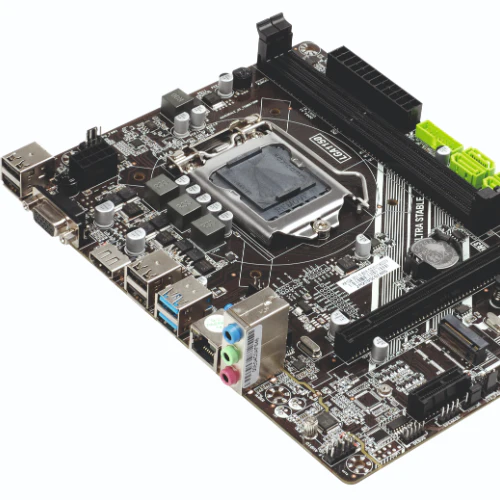

Lapcare H81 Mother Board H81 with NVME Slot

Warranty : 3 Years

Technical Specifications :

• Processor Support : Support Intel® Socket 1150 for 4th Generation Core™i7/ Core™ i5/Core™ i3/Pentium®/Celeron® Processors
• Chipset : Intel® H81 Chipset
• BIOS : AMI BIOS
• Memory Support : 2 x DDR3 1066/1333/1600MHz DIMMs
• Slots : 1 PCI Express x16 slot
• LAN : Realtek Chip, 1 x 100M
• Audio : Chip integrated by Realtek®662, Flexible 6-channel
• Storage : 4 x SATA 6Gb/s Ports
• USB : 4 x USB 3.0 port (2 at back panel, blue, 2 at mid-board) 6 x USB 2.0 port (4 at back panel, black, 2 at mid-board)
• Back panel : 1 x VGA Port, 1 x HDMI Port, 1 x LAN (RJ45) Port, 2 x USB 3.0 Ports (Blue), 4 x USB 2.0 Ports, 3 x flexible audio jacks
• Onboard Interface : 1 x USB 3.0 connector (19pin) supports 2 x USB 3.0 ports, 1 x USB 2.0 connector supports 2 x USB 2.0 Ports, 4 x SATA 3Gb/s Ports, 1 x NVMe Slot, 1 x 4 -pin CPU_FAN/SYS_FAN connectors, 1 x 24-pin ATX power connector, 1 x 4-pin 12V ATX Power connectors, 1 x F_Audio connector, 1 x F_Panel connector
• Form Factor : Micro-ATX
