-49%
Accessories, CCTV, CCTV SMPS, Power Supply, SMPS

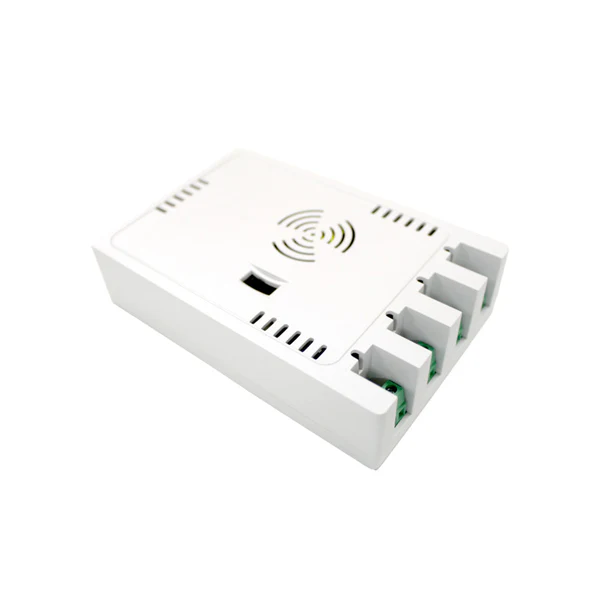

Lapcare CCTV SMPS 4 Channel Multiport (LCC-303)
Availability:
Available on backorder
- Universal ac input / full range
- Protection: short circuit/ over voltage/ over load/ over temperature
- Led indicator for power on for each channel
- Long distance voltage drop adjustment with cable compensation switch
- Low ripple voltage , low energy consumption with high efficiency
- Stabilize output with low interference
- No load power consumption <0.2w
- 100% full load built in test for long life and high reliability
₹439.00 ₹859.00
Available on backorder
CompareWarranty : 1 Year
Features :
- Universal ac input / full range
- Protection: short circuit/ over voltage/ over load/ over temperature
- Led indicator for power on for each channel
- Long distance voltage drop adjustment with cable compensation switch
- Low ripple voltage , low energy consumption with high efficiency
- Stabilize output with low interference
- No load power consumption <0.2w
- 100% full load built in test for long life and high reliability
Technical Specifications :
- Input Voltage : 140 – 300Vac
- Input Frequency : 50Hz
- Input Current : 0.7A@120Vac
- Output Voltage : DC12V-DC14.5V
- Output Current : 0-2.5A Max
- Load Efficiency : >86%
- Housing Material : ABS
- Dimension : 144X95X35mm
- Weight : 180g
