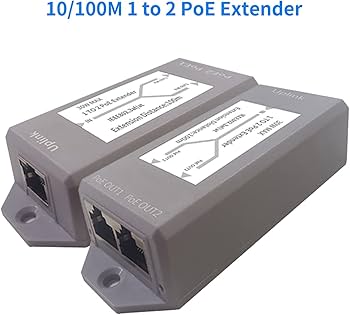

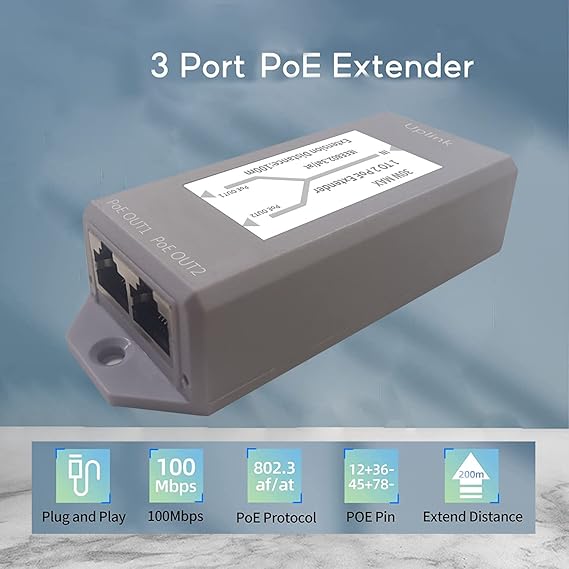

Woston WS-PE-T1T2-AB 2 Port PoE Extender

2 Port PoE Extender PoE+ Repeater 100 Meters(328 ft) Extender 1 in 2 Out Comply IEEE 802.3af/at Standard 10,100Mbps for Security PoE Camera Over Cat5/Cat6 or UTP Cables

Key Features

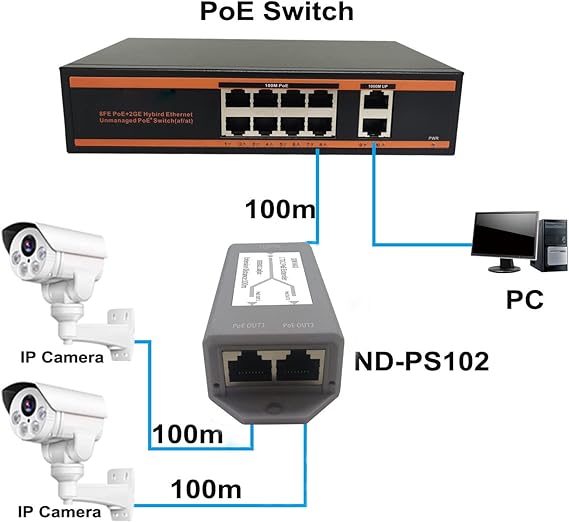

• 1.The PoE Extender With 10/100Mbps transmission rate,the PoE Repeater features one 30W PoE input port and two 15W PoE output port, running one cable to connect to 2 PoE IP devices.
• 2.Supports 10/100Mbps data rates, comply with IEEE802.3at and IEEE802.3af Standard. Provides 802.3af power levels when powered by any 802.3at source.

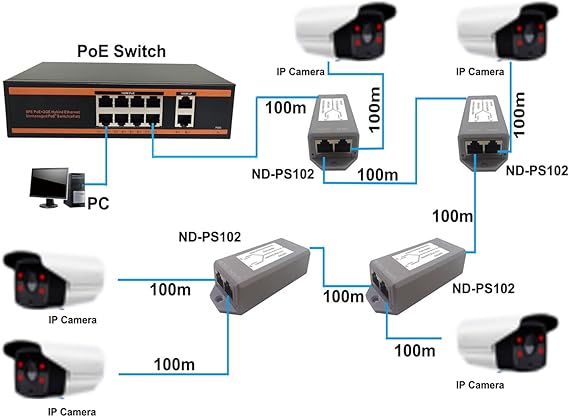

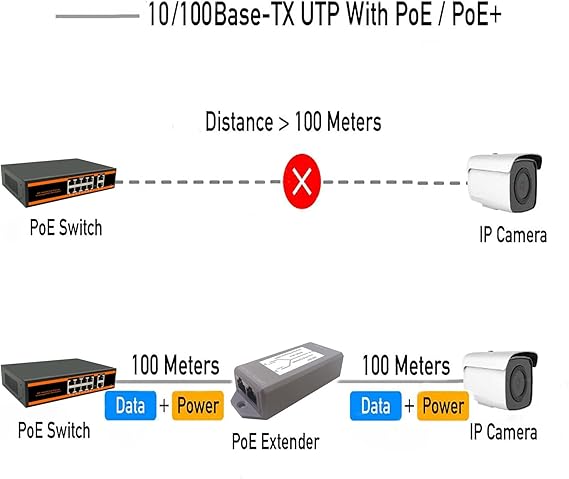

• 3.The PoE extender can extend the range of the Ethernet network by an additional 100m (328 ft). Extended PoE installation range by additional 100M. The maximum is 6 pieces, 700 meters (2296ft) when deployed in cascade.
• 4.Plug and Play,The PoE Extender is easy to setup with no software installation or configuration required. Perfect for Security Camera CCTV Surveillance, greatly extending the network signal transmission as well as power supplying distance.
• 5.Applicable Range: A Used with AP, IP camera, IP telephone and the other network equipments in the situation of the lack of power line or far away from the power outlets.

Product Description

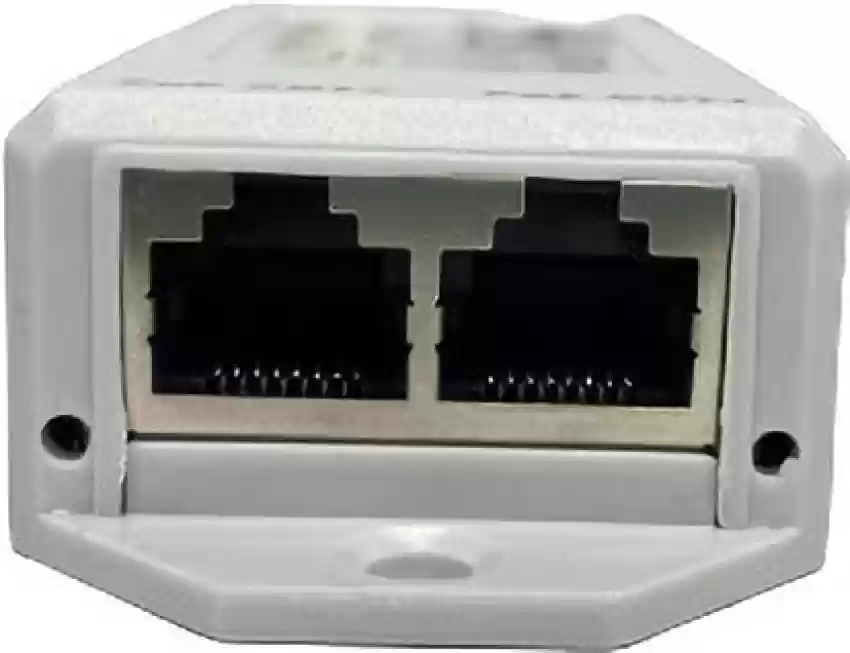

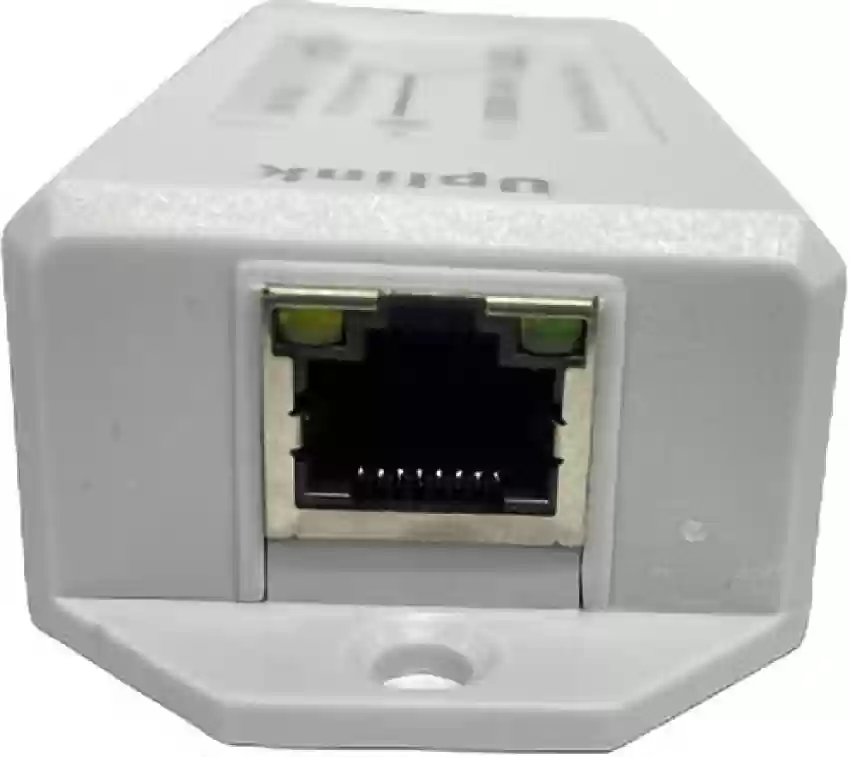

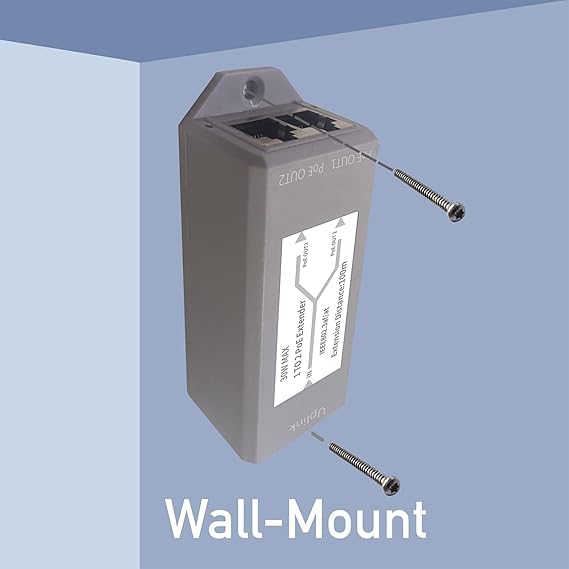

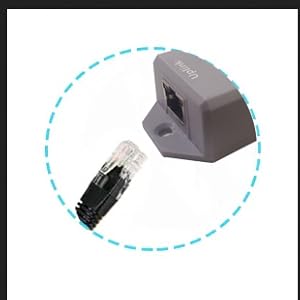

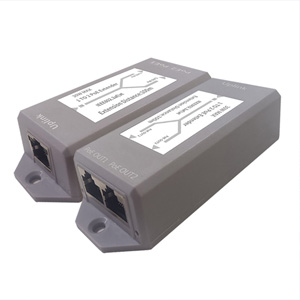

10/100Mpbs Ports The PoE Extender features one 10/100Mbps PoE+ input port and two 10/100Mbps PoE+ output port	Wall Mount The wall-mounted design is convenient for network deployment, allowing the extender to be installed in any position, and ensuring stability and avoiding damage.	Plug and Play Powered via the PoE input, Plug and Play. Automatically detects and protects PoE equipments from being damaged by incorrect installation.

Specification

Network Medium	Cat5 or better UTP cables (less than 100m)
Repeater Mode	Store and forward
PoE Standard	IEEE802.3at (PoE+)/IEEE802.3af (PoE)
Ethernet Speed	10/100Mbps Half/Full Duplex

Pin Assignment and Polarity	Input:1/2 (-) 3/6 (+) 7/8 (-) 4/5 (+) Output: 1/2 (+)3/6 (-)
Network Protocol	IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet
Environmental Conditions	Operating Ambient Temperature:-25 to 55°C Operating Humidity: Maximum 90%Non-condensing Storage Temperature:-30 to 70°C Storage Humidity:Maximum 95%Non-condensing
