2.8mp Special, Analog, CCTV

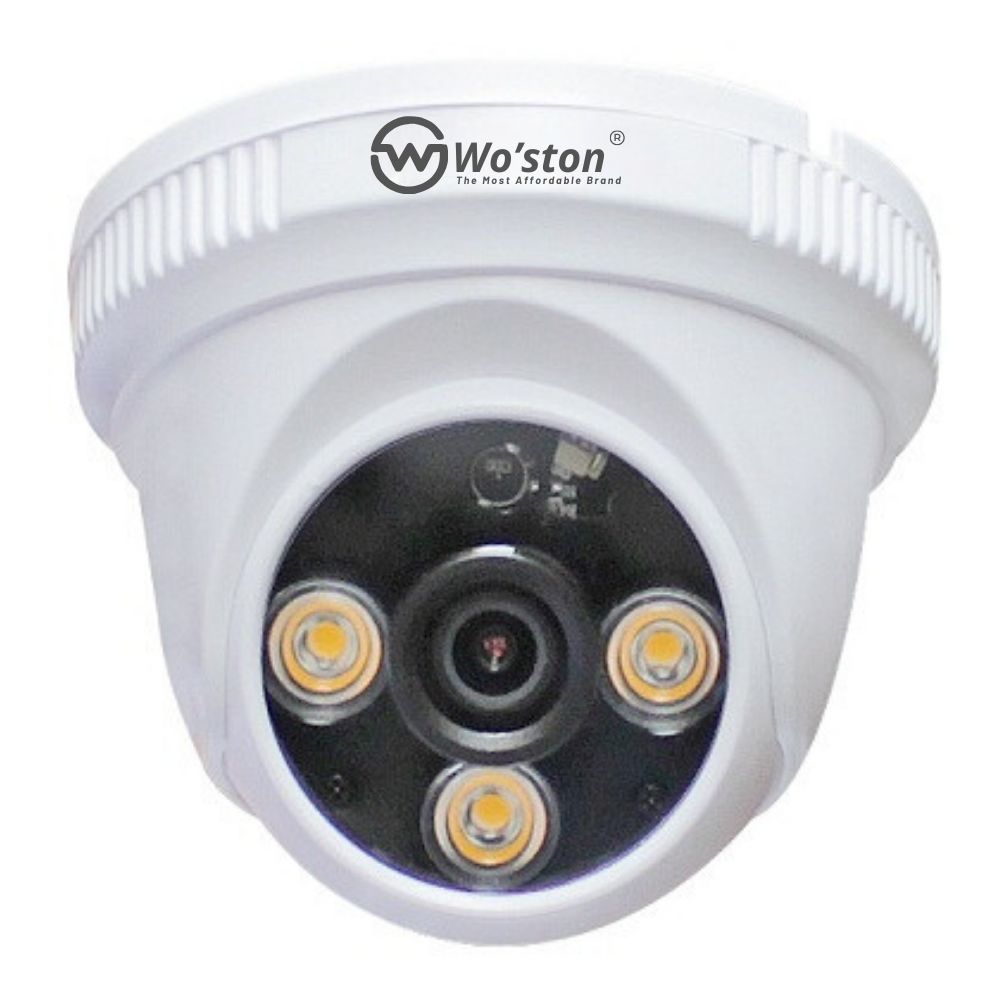

Woston 2.8mp Coloron Silver Series Special HD Color Dome Camera WS-1528DR-HD-S
₹950.00 ₹1,450.00
WS-1528DR-HD-S
Woston 2.8mp Coloron Silver Series Special HD Color Dome Camera
2.8MP Full HD IR Indoor Camera – 20Mtr.
- 1/2.9″ 2.8MP PS CMOS Image Sensor(0.9407Cm)
- Max. output 30fps@2.4MP
- DWDR, Day/Night (ICR), IP50, AWB, AGC, BLC
- 3.6 mm Fixed Lens (2.8 mm Optional)
- IR Range of 20 Mtrs.
| Image Sensor | 1/2.9 |
| Minimum Illumination | 0.1 lux @ (F2.0, AGC ON) |
| Body Type | Dome |
| Shutter Speed | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| White Balance | ATW / MWB |
| Lens | 3.6mm Lens |
| Gain Control (AGC) | Auto |
| S/N Ratio | >52dB (AGC off) |
| Back Light Comp. | Support |
| Frame Rate | 25/30fps@2.4MP |
| Video Output | TVI/AHD/CVI/CVBS output |
| Resolution | 2.8MP |
| ICR | Support ICR EXT/Auto / Color/ BW |
| Operating Temperature | -20°C to 60°C |
| Illumination Distance | Illumination Range of 20 Mtr. |
| Humidity | 90% or less (non-condensing) |
| Illumination LEDs | 3 PCS 3500K soft warm light |
| Power Source | 12VDC ± 10% |
| Power Consumption | Max. 3W (Max.3W with IR cut filter on) |
| Weatherproof Standard | NA |
| Dimension | 89.2mm x 89.4mm |
| Weight | 0.3KG |
