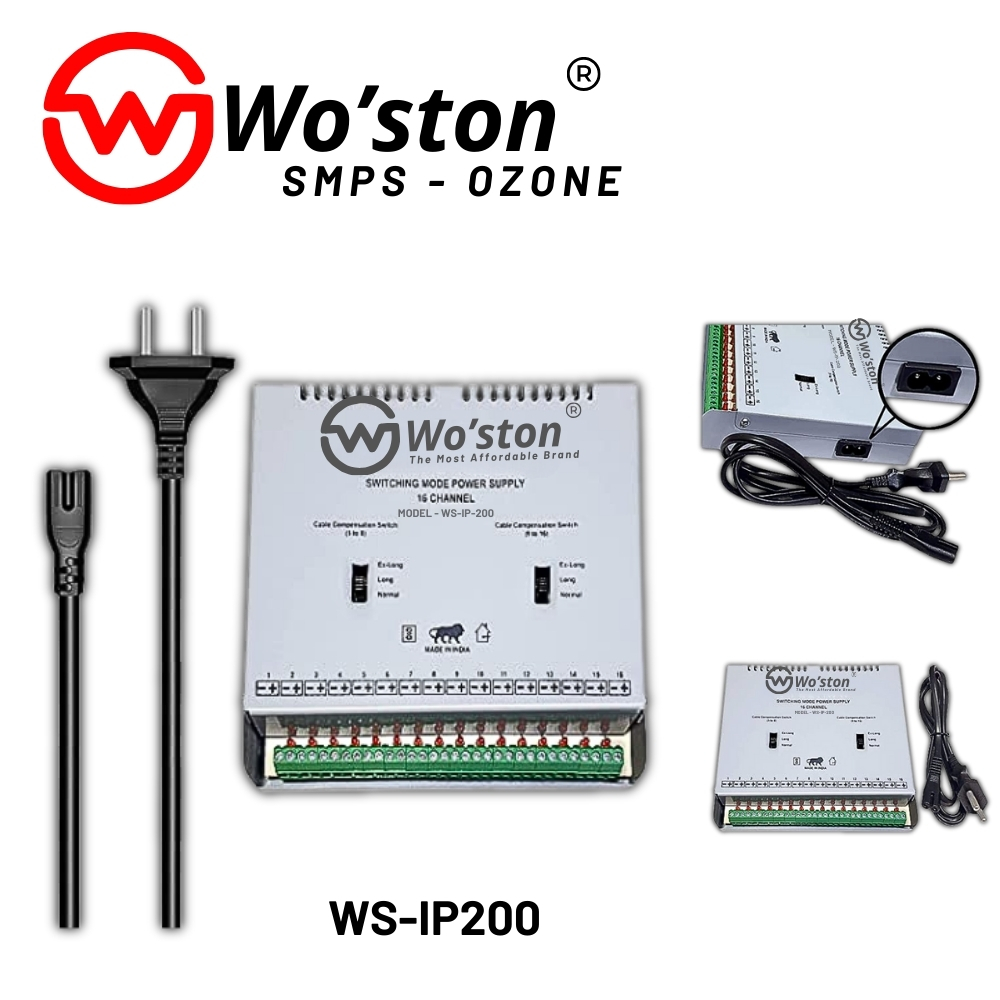

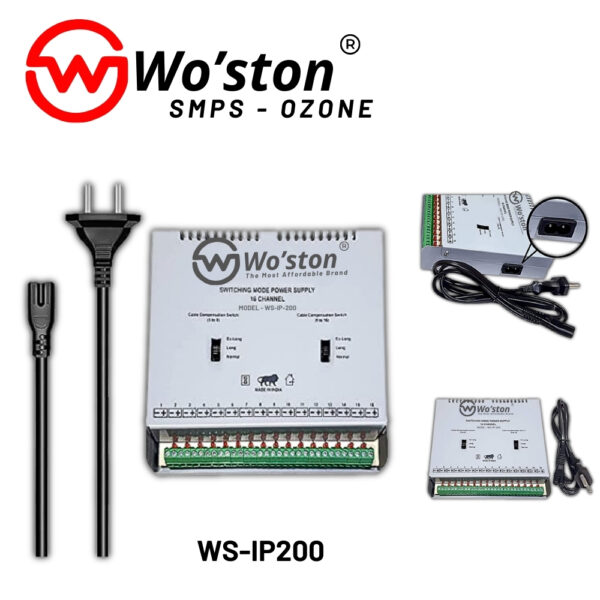

Woston CCTV SMPS 16 Channel ABS Multi Output (WS-IP200)
| Input voltage | 180~264V AC |
| Output voltage | 12V DC |
| Current Range | 0~8A |
| Rated Power | 96W |
| Ripple & Noise (max.) | 120mVp-p |
| Voltage Adj. Range | 11.4~12.6V |
| Line Regulation | ±1.0% |
| Voltage Tolerance | n/a |
| Setup Rise time | 2500ms, 15ms at full load |
| Hold Up Time (Typ.) | 35ms at full load |
| Load Regulation | ±5.0% |
| Temperature coefficient | ±0.03%/°C (0~50°C) |
| Frequency Range | 47~63HZ |
| Efficiency (Typ.) | 86% |
| AC Current (Typ.) | 2A/220VAC |
| Inrush Current (Typ.) | Cold Start: 50A/220V AC |
| Leakage Current | <2mA / 240VAC |
| Over Load | 110~200% rated output power, Protection type: Shut down O/P, recovers automatically |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500V DC / 25°C/ 70% RH |
| Working Humidity | 20 ~ 90% RH Non-condensing |
| Vibration | 10 ~ 500Hz, 3G 10min./1 cycle, 60min. each along X, Y, Z |
| Dimension | 186(L) x 130.5(W) x 39mm(H) |
| Store temperature | -20 ~ +85°C |
| Working temperature | -20 ~ +45°C |
| Withstand Voltage | I/P-O/P: 1.5KVAC I/ P-FG: 1.5KVAC O/ P-FG: 0.5KVAC |
₹1,550.00 ₹1,950.00
Wo’ston 16ch ABS Case Multi-Output Power Supply (Ozone Series)
Warranty : 2 Years
- 16 Channel Output
- With Cable Compensation Switch
- LED Indicator for Each Channel
- Built-in EMI Filter to Nullify Interference
- Cooling by Free Air Convection
- Built-in Constant Current Limiting Circuit
- 100% Full Load Built-in test
- Plastic Housing
