CP Plus 8 Channel 2MP H.265 DVR with HDMI VGA CP-VRA-1E0801-H

The CP Plus CP-VRA-1E0801-H 8 Channel Digital Video Recorder (DVR) from the Indigo Series is a professional surveillance recording solution designed for homes, offices, retail stores, warehouses, schools, and small business security systems. Built with advanced H.265 video compression, multi-format camera compatibility, and convenient remote monitoring capabilities, this DVR delivers dependable performance while maximizing storage efficiency and simplifying CCTV management.

Designed to support up to 8 surveillance cameras, the CP-VRA-1E0801-H is compatible with multiple video technologies including AHD, TVI, CVI, CVBS, and IP cameras. Its auto-adaptive video input automatically detects connected camera types, allowing users to build or upgrade surveillance systems without worrying about compatibility issues. This flexibility makes it an excellent choice for both new CCTV installations and existing security upgrades.

The DVR supports all-channel 1080N and 720P recording and playback, delivering smooth video performance for continuous surveillance. It provides clear recordings suitable for monitoring entrances, offices, parking areas, retail counters, warehouses, residential buildings, educational institutions, and commercial properties. The recording quality ensures that important security events can be reviewed with sufficient detail whenever required.

To optimize storage usage, the recorder supports advanced H.265 and H.264 dual-stream video compression. H.265 technology significantly reduces bandwidth requirements and storage consumption while maintaining high-quality video output. Compared to older compression standards, users can store substantially longer recording durations on the same hard drive capacity, reducing operating costs without sacrificing image quality.

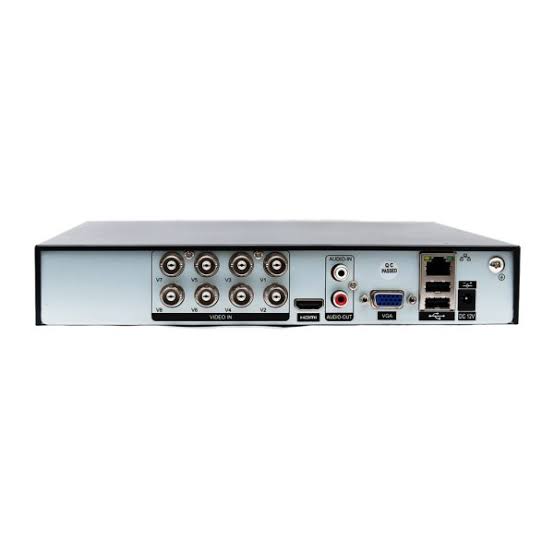

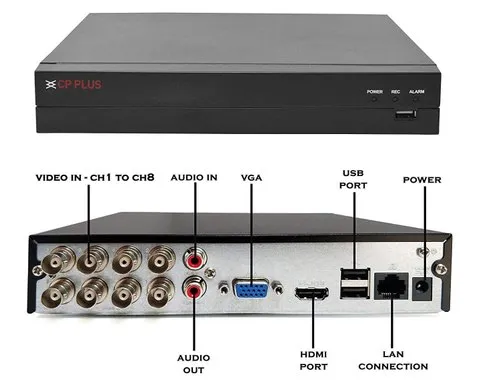

For video display, the CP-VRA-1E0801-H offers simultaneous HDMI and VGA outputs, allowing users to connect modern LED monitors, LCD displays, or traditional VGA monitors. Simultaneous output enables flexible monitoring configurations in security rooms, reception areas, offices, or retail environments while maintaining clear live viewing and playback.

The DVR includes one SATA interface capable of supporting surveillance hard drives up to 8TB. This large storage capacity enables continuous recording for extended periods, making it suitable for businesses and organizations that require long-term video retention. Users can install surveillance-grade hard drives to maximize recording reliability and system performance.

Remote monitoring is one of the key advantages of this recorder. Through the cMOB-20 mobile application, users can view live video, playback recordings, receive notifications, and manage the DVR directly from their smartphones. For desktop monitoring and centralized management, the DVR is compatible with CVMS-2000 software, providing complete control over multiple surveillance systems from a Windows computer.

The recorder features 1 audio input and 1 audio output (RCA), allowing integration with compatible audio devices for enhanced surveillance applications where audio recording is required. This additional functionality provides improved event documentation and situational awareness.

For system connectivity, the DVR includes a 10/100 RJ-45 Ethernet port for stable network communication and remote access. Two USB ports are provided for mouse operation, firmware upgrades, external storage devices, and convenient video backup to USB drives, making evidence export quick and simple whenever required.

The CP-VRA-1E0801-H is engineered for reliable long-term operation while maintaining excellent energy efficiency. With a power consumption of less than 10 watts (excluding the hard drive), the recorder helps reduce electricity costs while supporting continuous 24-hour surveillance.

Its compact desktop design allows easy installation in homes, offices, retail stores, educational institutions, warehouses, hotels, banks, hospitals, and commercial security control rooms. Whether deployed as a standalone recorder or as part of a larger surveillance network, the DVR delivers stable recording performance and dependable operation.

Manufactured to CP Plus quality standards, the CP-VRA-1E0801-H combines multi-format compatibility, efficient H.265 compression, large storage support, flexible video outputs, and remote monitoring into a cost-effective surveillance recording solution suitable for a wide range of CCTV applications.

Technical Specifications

Key Features

• 8 Channel Multi-Format DVR
• Supports AHD, TVI, CVI, CVBS & IP Cameras
• H.265 & H.264 Dual-Stream Compression
• HDMI & VGA Simultaneous Video Output
• Supports Up to 8TB SATA Hard Drive
• Remote Monitoring via cMOB-20 & CVMS-2000

Use Cases

• Home CCTV Systems
• Office Security
• Retail Stores
• Warehouses
• Schools & Colleges
• Hospitals
• Hotels
• Banks
• Apartment Buildings
• Small Business Surveillance
