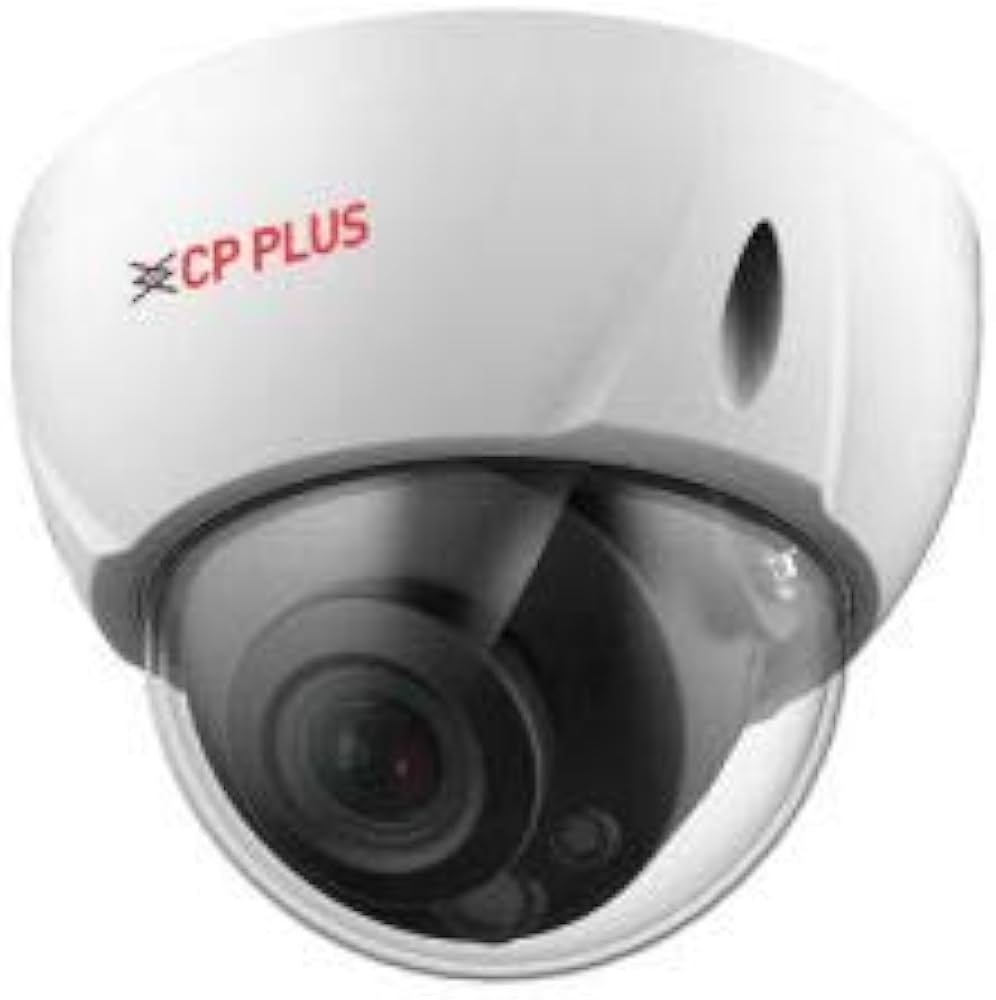

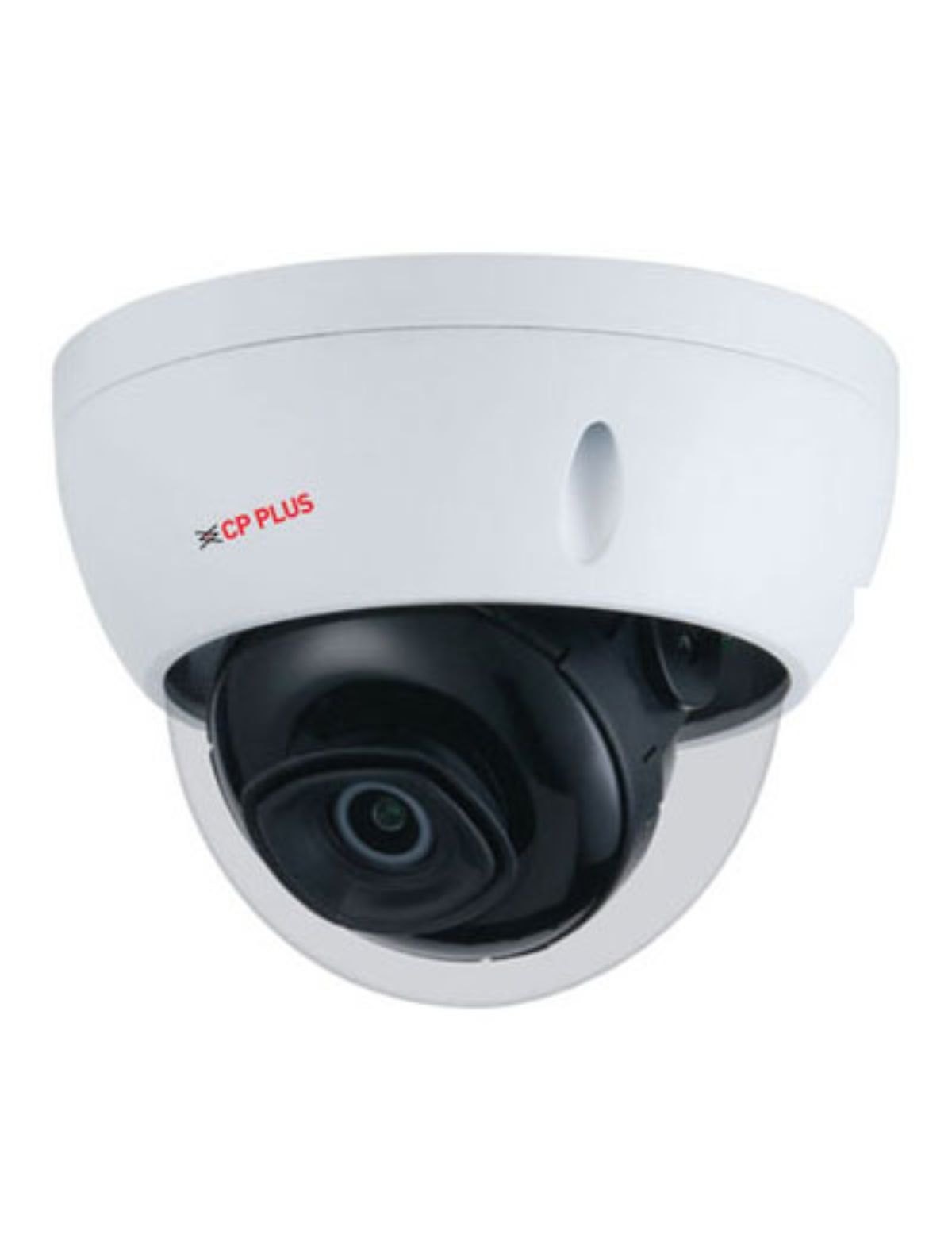

CP Plus 2MP Full HD IR Vandal Dome IP Camera with PoE CP-UNC-VB21L3C-MDS

The CP Plus CP-UNC-VB21L3C-MDS 2MP Full HD IR Vandal Dome IP Camera is a professional-grade network surveillance camera built to deliver exceptional image quality, intelligent security features, and outstanding durability for demanding surveillance environments. Designed for homes, offices, banks, schools, hospitals, shopping malls, warehouses, parking areas, factories, and other commercial applications, this camera combines Full HD video quality with advanced imaging technologies and rugged construction to provide dependable 24×7 security.

At its core is a 1/2.8-inch 2MP Progressive Scan CMOS Image Sensor, capable of capturing crystal-clear Full HD video at a maximum resolution of 1920 × 1080 pixels with smooth recording at 25/30 frames per second. The high-definition output ensures excellent image clarity, allowing users to identify faces, people, vehicles, and important activities with confidence during both live viewing and recorded playback.

The camera is equipped with a 2.8mm fixed lens, offering a wide viewing angle that is ideal for monitoring entrances, corridors, reception areas, offices, retail stores, classrooms, and open indoor or outdoor spaces. An optional 3.6mm lens is also available for installations requiring a narrower field of view and longer coverage.

Supporting Smart H.265, H.265, H.264, H.264H, H.264B, and MJPEG video compression technologies, the camera significantly reduces bandwidth usage and storage requirements while maintaining excellent video quality. This enables longer recording periods, efficient network performance, and reduced storage costs for Network Video Recorder (NVR) systems.

One of the key highlights of this model is its advanced Starlight Technology, which enhances image quality in extremely low-light conditions. Even with minimal ambient lighting, the camera produces bright, detailed, and low-noise images, allowing continuous monitoring before infrared illumination becomes necessary.

For complete darkness, the camera features powerful infrared LEDs with an effective night vision range of up to 30 meters. The automatic ICR Day/Night filter seamlessly switches between daytime colour imaging and nighttime infrared mode, ensuring uninterrupted surveillance around the clock.

To further improve image quality, the CP-UNC-VB21L3C-MDS incorporates several professional imaging technologies. 120dB True Wide Dynamic Range (WDR) balances bright and dark areas within the same scene, making the camera ideal for entrances and areas with challenging lighting conditions. Additional image optimization features including 3D Digital Noise Reduction (3D NR), Automatic White Balance (AWB), Automatic Gain Control (AGC), Backlight Compensation (BLC), Highlight Compensation (HLC), and Region of Interest (ROI) work together to produce consistently sharp and detailed surveillance footage.

The camera supports SMD+ (Smart Motion Detection Plus), an intelligent detection technology that helps distinguish human and vehicle movement from other objects. By minimizing false alarms caused by rain, animals, moving leaves, or lighting changes, SMD+ improves event accuracy and allows users to focus on genuine security incidents.

For flexible recording options, the camera includes microSD card support, enabling local video storage without relying solely on a Network Video Recorder. Combined with NVR compatibility, users can implement storage solutions that best suit their surveillance requirements.

Installation is simplified through Power over Ethernet (PoE) support, allowing both electrical power and network connectivity to be delivered through a single Ethernet cable. This reduces installation costs, minimizes wiring complexity, and provides cleaner deployments for professional IP surveillance systems.

Built to withstand harsh environments, the camera features an IP67 weatherproof rating, protecting it against rain, dust, and outdoor conditions. Additionally, its IK10 vandal-resistant metal housing offers superior protection against physical impact and tampering, making it especially suitable for public areas, schools, transportation facilities, banks, and commercial buildings where vandal resistance is essential.

The camera is fully compatible with iCMOB and gCMOB mobile applications, allowing users to remotely monitor live video, review recordings, and receive notifications from virtually anywhere. It also supports KVMS Pro CMS software, enabling centralized monitoring and management of multiple cameras within professional surveillance systems.

Designed for continuous operation and long-term reliability, the CP Plus CP-UNC-VB21L3C-MDS combines Full HD image quality, intelligent motion detection, Starlight technology, professional imaging features, rugged IK10 construction, PoE connectivity, and weatherproof protection into one dependable security solution for modern surveillance installations.

Technical Specifications

Key Features

• 2MP Full HD IP Vandal Dome Camera
• Starlight Technology with 30m IR Night Vision
• Smart H.265 Compression & SMD+ Detection
• 120dB True WDR with Advanced Image Processing
• PoE with microSD Card Recording Support
• IP67 Weatherproof & IK10 Vandal-Resistant Housing

Use Cases

• Banks & ATMs
• Schools & Colleges
• Office Buildings
• Hospitals
• Retail Stores
• Shopping Malls
• Warehouses
• Parking Areas
• Apartment Buildings
• Industrial Security
