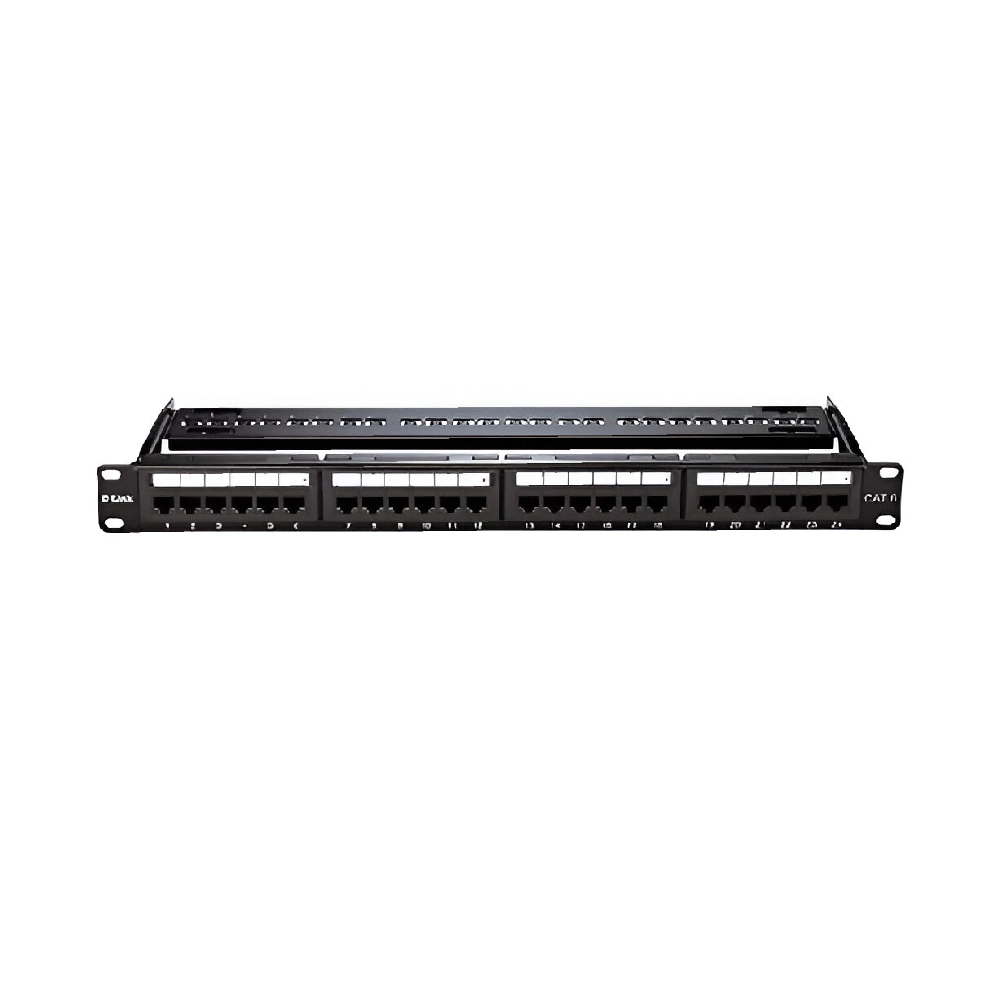

D-Link Posiflex CAT6 UTP 24 Port Loaded Patch Panel with 50µ Gold Plated Contacts

The D-Link Posiflex CAT6 UTP 24 Port Loaded Patch Panel is a professional-grade network termination and cable management solution designed for structured Ethernet cabling installations. Built to organize multiple CAT6 network connections in a centralized location, this 24-port loaded patch panel is ideal for offices, data centers, server rooms, CCTV infrastructure, educational institutions, commercial buildings, and enterprise networking environments.

With 24 loaded CAT6 UTP ports, the patch panel provides a convenient centralized termination point for network cables. Instead of connecting multiple permanent horizontal cables directly to switches, installers can terminate the cables on the patch panel and use short patch cords to connect them to network switches. This arrangement creates a cleaner, more organized, and easier-to-maintain network infrastructure.

The patch panel incorporates an identification ID plate made from PVC with a transparent finish and paper insert. This identification system allows installers and network administrators to label individual ports according to connected rooms, cameras, workstations, access points, or network devices. Clear port identification can significantly simplify troubleshooting, maintenance, and future network expansion.

The contact system uses phosphor bronze with nickel plating, providing a durable contact surface designed for reliable network termination. Phosphor bronze offers good mechanical strength and electrical characteristics, while the nickel-plated finish provides additional surface protection.

The main panel is manufactured from SPCC steel with a 1.5mm thickness and finished in black RAL 9005 paint. This robust metal construction provides structural strength and helps maintain a professional appearance inside network racks and server cabinets.

The jack bracket set is constructed from ABS material compliant with UL 94V-0, providing a durable mounting structure for the network modules. The contact brackets are made from PC material with UL 94V-2 compliance and feature a transparent finish, contributing to a well-organized and professional port assembly.

For additional structural stability, the patch panel includes a 1.5mm SPCC support bar, also finished in black RAL 9005 paint. The support structure helps maintain rigidity while supporting the loaded port assembly during installation and routine network maintenance.

The internal FR4 PCB is manufactured with UL 94V-0 compliant material, providing a robust platform for the electrical contact assembly. The PCB construction contributes to reliable internal connectivity and long-term use in structured cabling environments.

A notable feature is the 50 micro-inches gold-plated finish on the plug contact area. Gold plating helps provide a reliable contact interface and improved resistance to surface oxidation, supporting consistent connectivity between patch cords and the patch panel ports.

The loaded design makes installation convenient by providing the ports and associated components ready for network termination. Once permanent CAT6 cables are terminated, patch cords can be used to establish connections with switches, routers, patch management systems, and other network equipment.

The D-Link Posiflex 24-port patch panel is particularly suitable for structured cabling systems where multiple network connections need to be organized in a rack-mounted environment. It can be used for computers, IP cameras, wireless access points, VoIP devices, printers, servers, and other Ethernet-enabled equipment.

For CCTV installations, the patch panel can provide a centralized termination point for CAT6 cables running to IP cameras and PoE devices. This improves cable organization and makes future camera replacement, troubleshooting, and network expansion easier.

Combining a 24-port CAT6 UTP loaded design, robust SPCC construction, phosphor bronze contacts, FR4 PCB, UL-rated materials, port identification, and gold-plated contact areas, the D-Link Posiflex CAT6 UTP 24 Port Loaded Patch Panel provides a professional foundation for reliable and organized structured network infrastructure.

Technical Specifications

Key Features

• 24-Port CAT6 UTP Loaded Patch Panel
• Strong 1.5mm SPCC Metal Construction
• Phosphor Bronze Nickel-Plated Contacts
• 50 Micro-Inches Gold-Plated Contact Area
• FR4 PCB with UL 94V-0 Material
• Identification Plate for Easy Port Management

Use Cases

• Enterprise LAN Infrastructure
• Server Rooms
• Data Centers
• CCTV IP Camera Networks
• Office Networking
• Network Racks
• Schools & Colleges
• Commercial Buildings
• Industrial Networking
• Structured Cabling Installations
