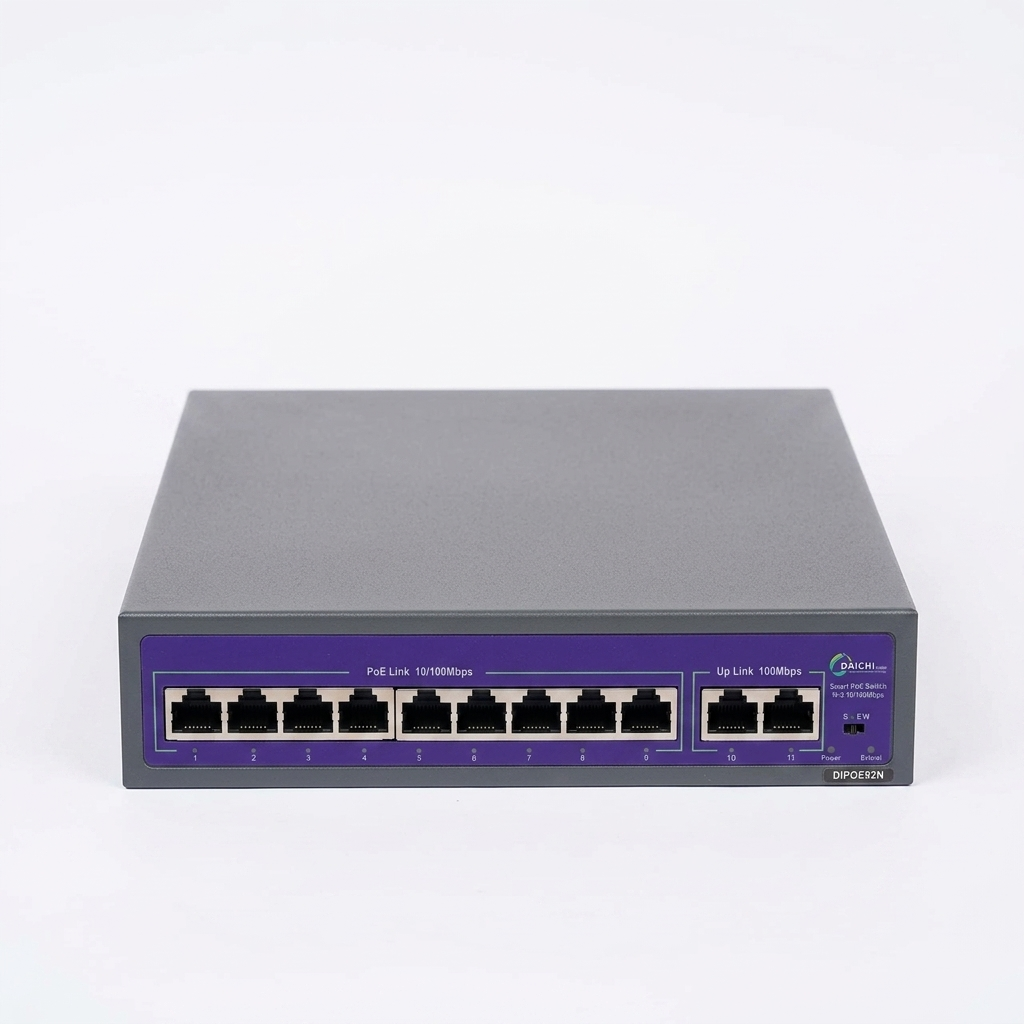

Daichi 9+2 Port 100Mbps PoE Switch for IP Cameras DIPOE92N

The Daichi DIPOE92N 9+2 Port PoE Network Switch is an unmanaged surveillance networking solution designed specifically for IP CCTV installations and other Ethernet-based security systems. With nine Power over Ethernet ports and two uplink ports, the switch provides a convenient centralized connection point for multiple IP cameras while helping simplify both network connectivity and power distribution.

The switch features 9 PoE ports, allowing compatible IP security cameras to receive network connectivity and electrical power through Ethernet cabling. This single-cable approach helps reduce the need for separate power adapters and individual electrical connections at each camera location, making CCTV installations cleaner and easier to manage.

The 2 additional uplink ports provide connectivity between the PoE switch and other network equipment, such as an NVR, router, or another network switch. This allows the connected surveillance cameras to communicate with the central recording system and broader network infrastructure.

Designed as an unmanaged PoE switch, the DIPOE92N is intended for straightforward deployment without requiring complex software configuration. This makes it suitable for CCTV installers, system integrators, businesses, and home users who need a simple solution for connecting multiple IP cameras.

The switch operates at up to 100Mbps, providing Fast Ethernet connectivity for compatible IP surveillance devices. This bandwidth is suitable for many standard IP CCTV installations, depending on the resolution, compression, frame rate, and network requirements of the connected cameras.

For surveillance systems, centralized PoE connectivity can significantly simplify installation. Instead of running separate network and power cables to each IP camera, compatible cameras can be connected to the PoE ports using Ethernet cables. This reduces cabling complexity and can make installation particularly convenient for cameras installed on walls, ceilings, gates, corridors, parking areas, warehouses, and building exteriors.

The DIPOE92N is designed to reliably power and connect IP security cameras and network recorders. By placing the switch near the surveillance infrastructure, installers can organize multiple camera connections in one location and connect the uplink ports to the NVR or network.

For small and medium-sized CCTV systems, nine PoE ports provide useful capacity for connecting multiple cameras without requiring a large enterprise-grade switch. This makes the unit suitable for homes, shops, offices, warehouses, schools, small commercial buildings, and other surveillance environments.

The switch can be paired with compatible network video recorders to create a centralized IP surveillance system. Cameras connected through the PoE ports can transmit their video data through the network to the NVR, where footage can be recorded and reviewed according to the capabilities of the overall surveillance system.

In addition to IP cameras, compatible Ethernet devices may also be connected where their network and power requirements are supported. The two uplink ports provide additional flexibility for connecting the surveillance network to routers, NVRs, or other network infrastructure.

The unmanaged design also helps simplify maintenance. Since there is no requirement for advanced network configuration for basic operation, installers can deploy the switch quickly as part of a CCTV installation and focus on camera positioning, recording configuration, and network connectivity.

For residential security, the DIPOE92N can provide centralized connectivity for multiple outdoor and indoor IP cameras. For commercial applications, it can help connect cameras covering entrances, reception areas, parking spaces, warehouses, sales floors, and other important locations.

The Daichi DIPOE92N therefore provides a practical combination of PoE connectivity, multiple surveillance ports, uplink capability, and straightforward unmanaged operation. It is an effective option for users looking to simplify power and network distribution in compatible IP CCTV systems.

Technical Specifications

Key Features

• 9-Port PoE Surveillance Switch
• 2 Uplink Ports for Network Connectivity
• Up to 100Mbps Network Speed
• Power & Data Transmission Through Ethernet
• Unmanaged Plug-and-Play Operation
• Designed for IP Cameras & NVRs

Use Cases

• IP CCTV Camera Systems
• Home Security Installations
• Office Surveillance
• Retail Store CCTV
• Warehouse Monitoring
• Small Business Security
• School & College Surveillance
• NVR & IP Camera Networks
• Commercial Security Systems
• Multi-Camera IP Surveillance
