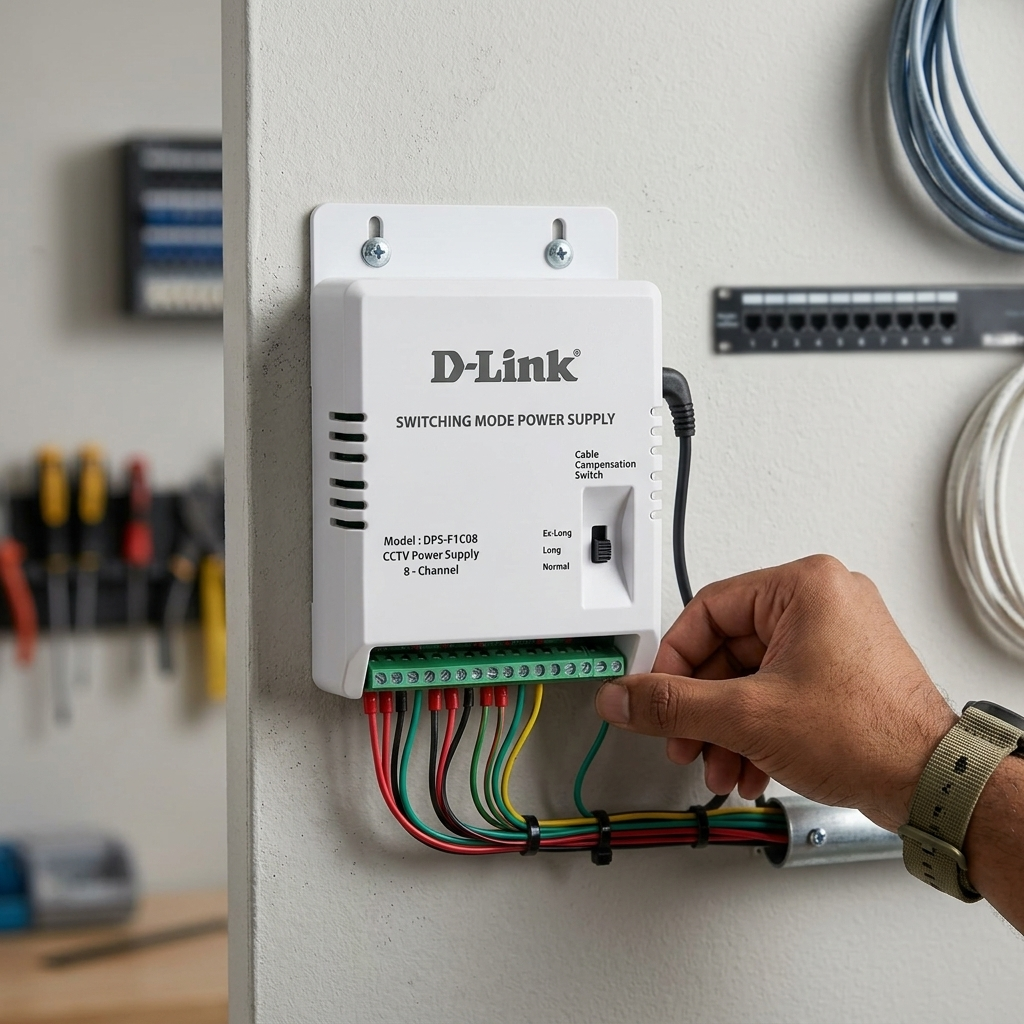

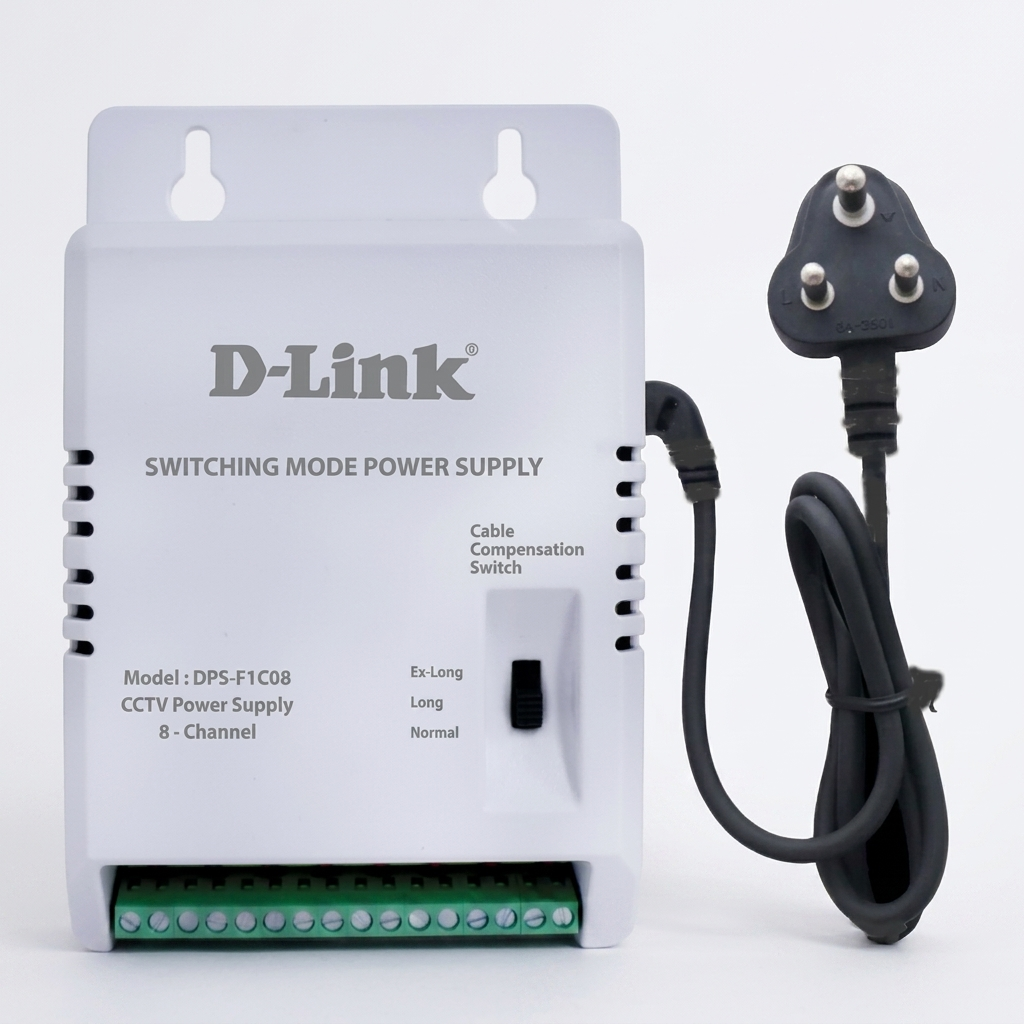

D-Link DPS-F1C08 8 Channel CCTV Power Supply 12V 1A Per Channel SMPS

The D-Link DPS-F1C08 8 Channel CCTV Power Supply is a dedicated surveillance power distribution solution designed to provide stable and reliable power to multiple CCTV cameras from a centralized unit. Built for security camera installations, this power supply combines eight independent output channels, stabilized voltage, protection features, channel-level LED indicators, and an integrated power cord to simplify CCTV system installation and maintenance.

With 8 individual output channels, the DPS-F1C08 allows installers to power multiple compatible CCTV cameras from a single centralized power supply. This makes it particularly useful for residential security systems, offices, retail stores, warehouses, schools, commercial buildings, and other surveillance installations requiring organized power distribution.

Each channel provides a 12V output with up to 1A maximum current per channel. The independent channel design helps organize camera power connections and makes it easier for installers to identify and manage individual camera power feeds. The total connected load should always remain within the specified capacity of the power supply and individual channels.

The DPS-F1C08 is designed with a highly integrated SMPS switcher IC, providing an efficient switching power supply architecture. SMPS technology helps convert incoming AC power into the regulated DC voltage required by compatible CCTV equipment while maintaining efficient operation and reducing unnecessary power consumption.

A key advantage of this CCTV power supply is its stabilized output. Stable power delivery is important for surveillance cameras because inconsistent voltage can affect camera operation and overall system reliability. The DPS-F1C08 is designed to provide a consistent 12V DC supply to compatible camera equipment.

The power supply also incorporates low-interference design, helping minimize unwanted electrical interference that could potentially affect surveillance equipment. This is particularly useful in CCTV installations where reliable camera operation and consistent video performance are important.

For additional protection, the DPS-F1C08 includes surge protection to help safeguard the power supply and connected equipment against certain electrical surge conditions. It also features short-circuit protection, adding an important layer of protection in surveillance environments where multiple camera connections are installed.

The unit incorporates an auto-restart function following a short-circuit protection event. This feature can help restore operation after the abnormal condition has been cleared without requiring unnecessary manual intervention.

Individual LED indicators for each channel provide convenient visual status monitoring. Installers can quickly check the power condition of individual channels, making troubleshooting and maintenance easier. This can be particularly useful in larger CCTV systems where identifying a power-related issue quickly can reduce service time.

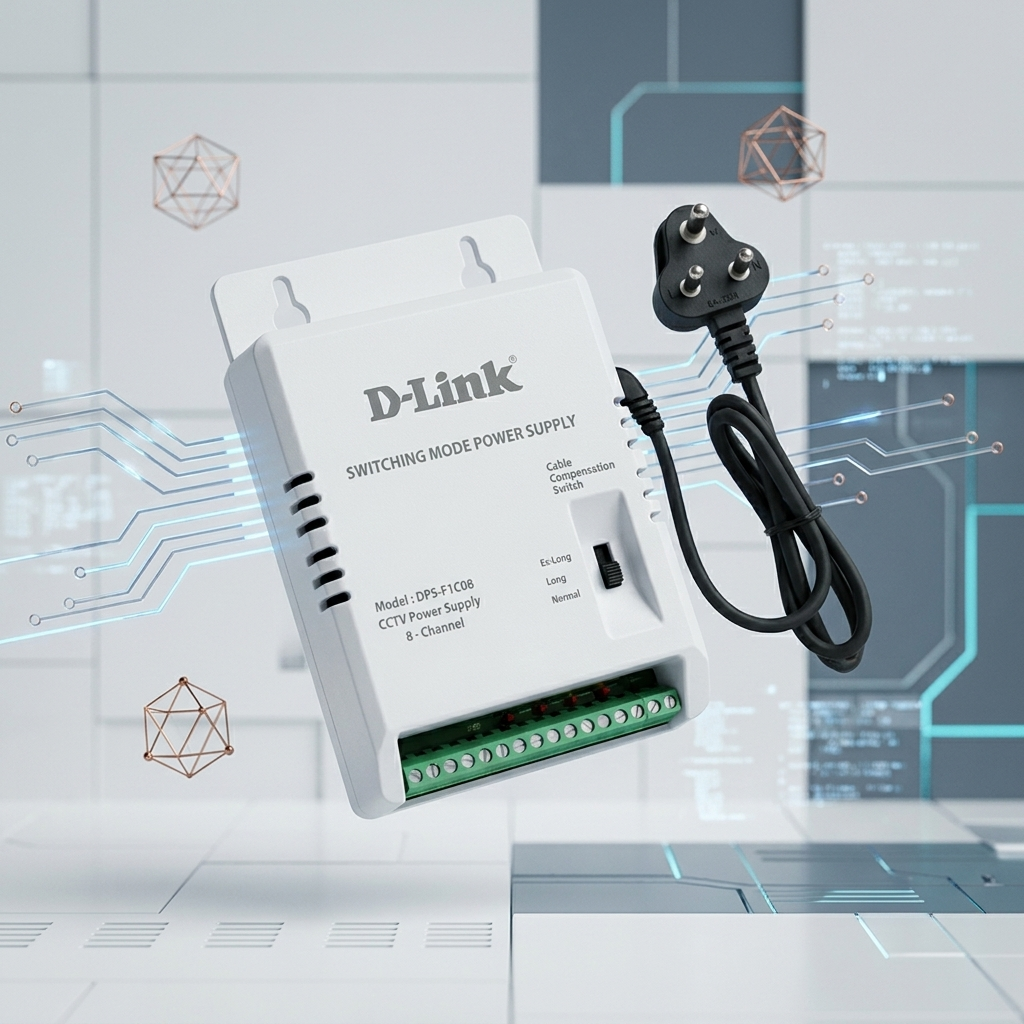

The power supply comes with an in-built power cord featuring a 3-pin plug, simplifying connection to a standard electrical supply. The integrated cable reduces the need for an additional power cable and helps create a cleaner installation.

The DPS-F1C08 uses an insulated plastic cabinet, providing protection around the internal electrical components while maintaining a compact form factor suitable for CCTV installations. The insulated enclosure also helps make the unit practical for installation in appropriate equipment areas.

The power supply accepts an input voltage range of 100VAC to 240VAC at 50/60Hz, allowing it to operate across a broad AC input range. This makes the unit suitable for standard electrical environments where compatible mains voltage is available.

Designed for professional and everyday CCTV installations, the D-Link DPS-F1C08 provides an organized alternative to using separate power adapters for each camera. Centralizing camera power connections can simplify maintenance, improve cable organization, and make future troubleshooting more straightforward.

Whether used for a home CCTV system, retail surveillance, office security, warehouse monitoring, educational institution, or commercial installation, the D-Link DPS-F1C08 8 Channel CCTV Power Supply provides a practical and efficient method of powering multiple compatible 12V surveillance cameras.

Technical Specifications

Key Features

• 8-Channel 12V CCTV Power Supply
• Up to 1A Output Per Channel
• Stabilized Low-Interference Output
• Surge & Short-Circuit Protection
• Individual LED Indicators for Each Channel
• Auto Restart with Built-in 3-Pin Power Cord

Use Cases

• 8-Channel CCTV Systems
• Home Security Installations
• Office Surveillance
• Retail Store CCTV
• Warehouse Security
• School & College Surveillance
• Commercial Buildings
• Small Business CCTV
• Residential Security Systems
• Professional CCTV Installations
