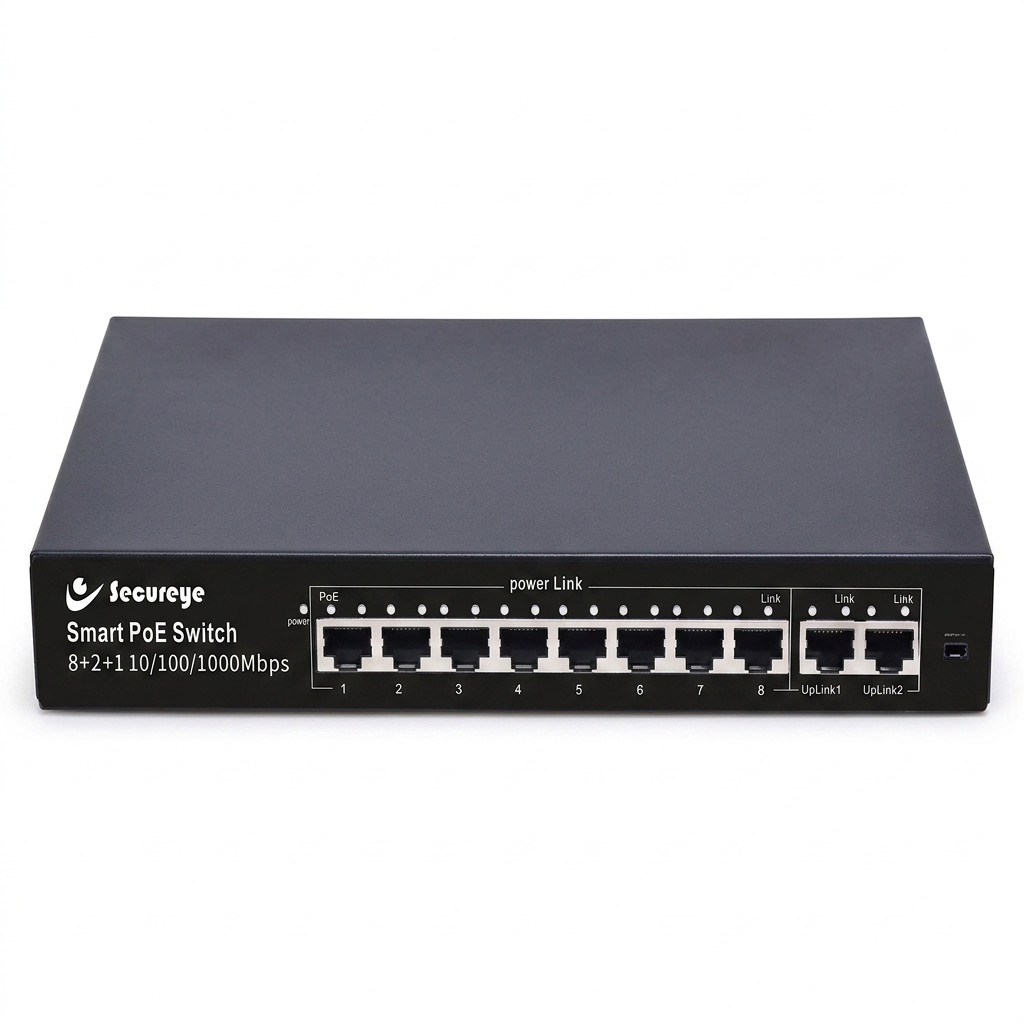

Secureye 8 Port PoE Switch 2 Uplink 150W CCTV Network Switch 250M Long Range

The Secureye 8 Port PoE Switch is a high-performance Fast Ethernet switch engineered for professional IP surveillance systems and Power over Ethernet (PoE) networking applications. Designed to simplify CCTV installations and enterprise networking, this switch combines reliable data communication with centralized power delivery, allowing both power and network connectivity to be transmitted through a single Ethernet cable. It is an excellent choice for homes, offices, schools, hotels, warehouses, factories, commercial buildings, hospitals, and large surveillance deployments.

Equipped with eight 10/100Mbps PoE ports and two dedicated 10/100Mbps uplink ports, the switch provides flexible connectivity for multiple IP cameras and other PoE-enabled devices. The dedicated uplink ports ensure seamless connection to routers, NVRs, core switches, or existing LAN infrastructure without reducing the number of available PoE ports. This makes the switch suitable for expanding existing surveillance systems while maintaining organized network architecture.

The switch fully supports IEEE 802.3af and IEEE 802.3at Power over Ethernet standards, enabling automatic detection and safe power delivery to compatible devices. Each PoE port can supply up to 30 watts of power, making it suitable for IP cameras, PTZ cameras, wireless access points, VoIP phones, biometric attendance systems, access control devices, and other PoE-enabled equipment. With a generous total power budget of 150 watts, the switch can efficiently operate multiple devices simultaneously while maintaining stable and intelligent power distribution.

One of the key advantages of this switch is its long-distance transmission capability. When Extend Mode is enabled, both data and electrical power can be transmitted over Ethernet cables up to 250 meters, significantly extending beyond the standard 100-meter networking limitation. This feature is particularly valuable for surveillance systems installed across campuses, warehouses, industrial sites, parking lots, hotels, schools, farms, commercial buildings, and large outdoor areas where cameras are positioned far from the control room.

The integrated VLAN function enhances network security and improves broadcast traffic management by isolating PoE ports from one another when required. This helps reduce unnecessary network traffic, minimizes broadcast storms, and improves the stability and security of surveillance networks, especially in medium and large-scale CCTV installations.

To ensure uninterrupted performance, the switch incorporates advanced network storm suppression technology. This intelligent feature automatically controls excessive broadcast, multicast, and unknown traffic, preventing network congestion and maintaining smooth communication between connected devices. As a result, IP cameras can continuously stream high-quality video without interruptions caused by excessive network traffic.

All Ethernet ports support automatic MDI/MDIX crossover detection and auto-negotiation, eliminating the need for crossover cables or manual configuration. The switch automatically detects connected devices and optimizes communication speed and cable configuration, simplifying installation and reducing deployment time.

The Secureye 8 Port PoE Switch is built with an integrated power supply, eliminating the need for bulky external adapters while improving installation convenience. Its store-and-forward switching architecture ensures reliable packet forwarding by verifying data integrity before transmission, improving overall network stability and reducing transmission errors.

For enhanced reliability in challenging electrical environments, the switch includes 4KV lightning protection to safeguard connected devices from voltage spikes and electrical surges. This protection is especially beneficial for outdoor surveillance installations where environmental electrical disturbances are more common.

The fanless cooling design enables completely silent operation while reducing maintenance requirements. Natural heat dissipation ensures stable long-term performance without introducing dust through cooling fans, making the switch suitable for offices, retail stores, conference rooms, classrooms, hospitals, and other quiet environments. Its compact desktop and wall-mountable design allows flexible installation in network cabinets, control rooms, communication racks, or equipment rooms.

Whether deploying a new surveillance system or expanding an existing IP network, the Secureye 8 Port PoE Switch delivers dependable performance, intelligent PoE management, long-distance connectivity, and enterprise-grade reliability. It provides an efficient networking solution for professional CCTV installations and modern Ethernet infrastructure.

Technical Specifications

Key Features

• 8 PoE Ports with 2 Dedicated Uplink Ports
• IEEE 802.3af/at Power over Ethernet Support
• 250-Meter Long Distance Extend Mode
• 150W Total PoE Budget with 30W Per Port
• VLAN, Network Storm Protection & 4KV Lightning Protection
• Fanless Silent Design with Built-in Power Supply

Use Cases

• IP CCTV Surveillance Systems
• PTZ Camera Installations
• Office Network Infrastructure
• Warehouse Security
• School & College Surveillance
• Hotel & Hospital Networking
• Retail Store CCTV
• Industrial Automation Networks
• Wireless Access Point Deployment
• Access Control & Biometric Systems
